Why fluorescence microscopy needs AI super-resolution tools

Fluorescence microscopy has always forced a compromise between spatial resolution, imaging speed, and the light dose a sample can tolerate before photobleaching or phototoxicity sets in. Techniques that push resolution beyond the diffraction limit, including STED and single-molecule localization microscopy, achieve that gain by demanding more photons, more acquisition time, or both, and even standard confocal and widefield imaging run into the same ceiling whenever an experiment calls for faster frame rates or longer observation windows.

Content-aware image restoration and related deep learning methods do not remove these physical limits; they shift where the acceptable balance sits. This fits within a broader pattern across AI-driven imaging analysis, where trained models recover signal that would otherwise require a larger photon budget to capture directly, reallocating photons saved during acquisition toward speed, depth, or reduced sample damage.

The structures at stake range from fast subcellular dynamics, such as vesicle trafficking and mitochondrial fission, to whole-embryo developmental time-lapses that must be tracked for hours without irreversibly damaging the specimen. In each case, the researcher’s actual choice is rarely resolution or speed in isolation; it is a three-way negotiation between resolution, speed, and the cumulative light dose the biology under study can tolerate before it stops behaving normally.

How content-aware image restoration works

CARE trains a convolutional neural network on pairs of low-signal and high-signal images of the same structure, teaching the network to map noisy, undersampled input onto a higher-quality equivalent. Once trained, the network applies that learned mapping to new images acquired under the same low-light or fast-acquisition conditions, without needing a second, cleaner acquisition of every future sample.

The original demonstration of the method showed that images could be restored using up to 60-fold fewer photons during acquisition, with near isotropic three-dimensional resolution achieved despite 10-fold axial undersampling, and sub-diffraction structures resolved at 20-times-higher frame rates than prior state-of-the-art methods. Those gains illustrate the underlying logic: photons saved during acquisition are reinvested into resolution, speed, or a gentler light dose.

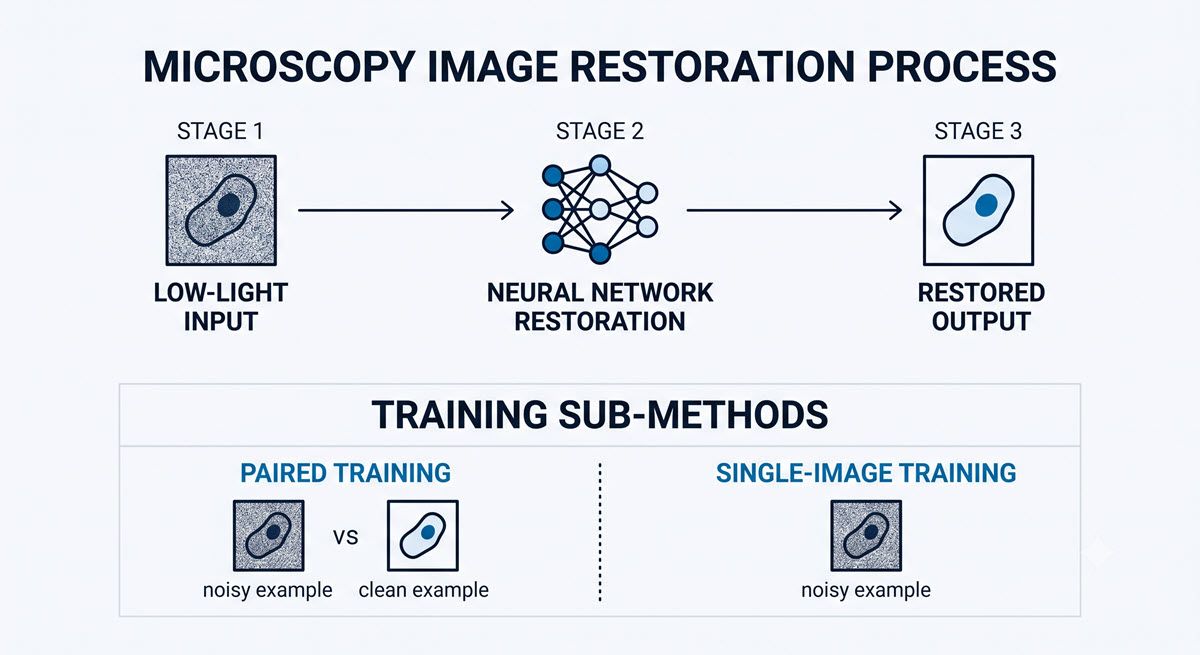

Figure 1: A three-stage flowchart showing how a noisy, low-light microscopy image is transformed into a restored, high-signal image by a trained neural network. Credit: AI-generated image created using Google Gemini (2026).

CARE’s original implementation is built on a U-Net-style encoder-decoder network architecture that compresses an image down to a compact representation before reconstructing it at full resolution, a design originally developed for biomedical image segmentation and later adapted for restoration tasks. Because the network also outputs a per-pixel measure of prediction uncertainty, researchers can flag image regions where the restoration is less reliable rather than treating every pixel of the output as equally trustworthy.

CARE and its deep learning successors

CARE’s central premise, that a trained network can supersample or denoise images acquired under degraded conditions, has been extended well beyond its original fluorescence demonstration. Point-scanning super-resolution (PSSR) applies the same principle to point-scanning instruments such as laser-scanning confocal and electron microscopes, where imaging speed and pixel resolution are otherwise locked in a direct trade-off. The underlying restoration problem looks similar across these instruments even though the acquisition hardware is entirely different.

PSSR relies on a synthetic-data generator its developers call a crappifier to computationally degrade high-quality ground-truth images into realistic low-quality training pairs, an approach demonstrated in point-scanning super-resolution imaging, removing the need to physically acquire matched noisy and clean datasets for every new sample type. A multi-frame variant that draws on information from adjacent time points further improves predictions for fast time-lapse imaging of subcellular structures such as mitochondria.

A separate successor, residual channel attention networks (RCAN), extended the underlying restoration concept into three dimensions, enabling continuous time-lapse imaging over thousands of volumes without apparent photobleaching, roughly 2.5-fold lateral resolution enhancement when confocal images were restored using STED microscopy as a ground truth, and roughly 1.9-fold lateral and 3.6-fold axial resolution gains when structured illumination microscopy data were restored using expansion microscopy as a reference. That cross-modality transfer, where one super-resolution technique supplies the ground truth for improving another, illustrates how restoration networks can move resolution gains between otherwise distinct imaging modalities.

Deep learning denoising for live-cell imaging

Supervised approaches such as CARE and PSSR both depend on paired training data, which is straightforward for fixed samples but often impossible in live-cell imaging, where a genuinely clean ground truth cannot be acquired without altering or ending the very dynamics under study. Self-supervised denoising methods address that gap directly.

Noise2Void, one of the most widely adopted self-supervised denoising methods, trains directly on the body of noisy data awaiting restoration by masking individual pixels during training, forcing the network to predict each pixel’s value from its surrounding context rather than memorizing noise patterns. That design makes it applicable to live-cell datasets and other cases where a second, less noisy image of the same sample cannot be captured.

The trade-off is that self-supervised methods generally cannot match the accuracy of a well-trained supervised model when high-quality paired training data genuinely is available, since they never see a true clean target during training. In practice, many imaging groups use self-supervised approaches specifically for the live-cell and time-sensitive experiments where paired acquisition is not an option, while reserving supervised methods such as CARE for fixed-sample or repeatable workflows where matched training pairs are practical to collect.

AI-assisted STED and expansion microscopy

Restoration networks have also been adapted to super-resolution modalities that push well past the diffraction limit, extending the same computational logic to techniques that were originally developed entirely independently of machine learning. A two-step architecture combining a residual network with a channel-attention module, known as UNet-RCAN, has enabled fast, gentle STED microscopy that cuts the pixel dwell time needed for STED imaging by more than 32-fold, lets researchers record live-cell mitochondrial dynamics continuously for more than 200 frames with minimal phototoxicity (a 10-fold increase over conventional STED acquisition), and contrasts sharply with conventional STED imaging of fixed samples in the same study, which typically lost half its signal within just 5 to 10 frames.

Expansion microscopy, which physically enlarges a specimen using swellable hydrogels rather than optical tricks, generates its own computational bottlenecks. As expansion factors and multiplexing increase, the resulting datasets strain classical segmentation and distortion-correction methods, a challenge highlighted in recent expansion omics research, driving growing interest in deep learning approaches that can correct for anisotropic tissue expansion and reassign signal to the correct cellular structures at scale.

The two techniques also intersect directly: the same restoration architecture described above has also been used to sharpen structured illumination microscopy data by borrowing resolution from expansion microscopy as a reference, rather than from a different super-resolution modality. That kind of cross-modality transfer illustrates a broader trend in the field, where physical super-resolution methods and computational restoration methods increasingly reinforce rather than compete with each other.

Practical guide to CARE and Noise2Void

Applying CARE in practice starts with acquiring a modest set of matched low- and high-quality image pairs, typically a few dozen fields of view, from the same sample type and imaging conditions the restoration model will later be applied to. The original CARE implementation was released as open-source Python code alongside plugins for FIJI and KNIME, packaging this training and prediction workflow into tools that do not require a deep learning background to run. Restored images then typically feed into the cell segmentation and detection models that process them downstream.

Noise2Void follows a similar workflow but skips the paired-acquisition step entirely, training instead on the researcher’s own noisy dataset. Training either model is feasible on a single consumer or workstation-class graphics processing unit for most two-dimensional and moderate-size volumetric datasets. Larger three-dimensional or multi-frame models can require considerably more memory and training time, though inference on new images is typically fast enough to run alongside routine acquisition. The most common failure mode in either workflow is applying a model trained on one sample type, fluorophore, or acquisition setting to a meaningfully different one; restoration networks generalize well within the conditions they were trained on but can introduce subtle artifacts outside that range. In both cases, the following steps help keep the restoration reliable:

• Acquire a small set of matched low- and high-quality training pairs from representative samples before scaling up.
• Train or fine-tune an existing CARE or Noise2Void model on that data rather than applying a generic pretrained model blindly.
• Validate restored images against an independent ground truth or an orthogonal measurement before drawing quantitative conclusions.
• Document the acquisition settings used for the degraded input, since restoration performance depends on matching those conditions.
• Revalidate the model whenever the sample type, fluorophore, or imaging system changes.

Table 1: Comparison of deep learning restoration approaches for super-resolution and low-light microscopy.

AI super-resolution microscopy expands what researchers can observe

AI super-resolution microscopy has not eliminated the physical trade-offs between resolution, speed, and light exposure, but it has given researchers a computational lever to shift where that balance sits. Content-aware restoration, self-supervised denoising, and their extensions to STED and expansion microscopy each recover signal that direct acquisition alone would otherwise demand more light or time to capture. These gains sit alongside the wider set of data science tools reshaping research available to working life scientists, and the pace of new restoration variants suggests the underlying method will keep extending to additional imaging modalities.

The practical payoff is a wider range of experiments that were previously constrained by phototoxicity, photobleaching, or acquisition speed, including long-term live-cell imaging and volumetric reconstruction. As with any computational method applied to scientific data, restored images warrant the same validation discipline as any other quantitative measurement before they inform a biological conclusion.
