AI and Machine Learning for Spatial Data Visualization

The role of AI in spatial data visualization

Spatial transcriptomics and multiplexed imaging datasets require AI-driven visualization methods because they occupy two simultaneously meaningful spaces: a high-dimensional gene expression space and a two-dimensional (2D) physical coordinate space. Each measurement is attached to a specific position in tissue, making spatial context an inherent part of the data that expression-only pipelines discard. Conventional visualization tools were designed for expression space alone and largely ignore the spatial dimension.

Principal component analysis (PCA), the most widely used linear dimensionality reduction method, projects high-dimensional expression data onto the directions of greatest variance without any reference to tissue position. In a spatial transcriptomics dataset, PCA captures the dominant transcriptional programs across the tissue but makes no use of the spatial coordinate system. Two spots from opposite sides of a tissue section may appear adjacent in PCA space if they share a similar expression profile, and whether that co-localization reflects a real biological relationship or an artifact of shared cell-type composition is impossible to determine from the PCA plot alone.

AI and machine learning (ML) methods intervene at this point by offering two complementary capabilities. First, nonlinear dimensionality reduction algorithms such as Uniform Manifold Approximation and Projection (UMAP) and t-distributed stochastic neighbor embedding (t-SNE) produce more faithful representations of the continuous variation in expression space than linear methods, revealing clusters and gradients that PCA misses. Second, a newer class of spatially aware models explicitly encodes tissue coordinates alongside expression data, producing representations that simultaneously reflect transcriptional state and physical position.

A 2022 review published in Genome Biology cataloged the machine learning methods in spatial transcriptomics now applied across the full analysis pipeline, spanning dimensionality reduction, spatial clustering, gene imputation, and cell-cell interaction inference. The breadth of methods cataloged illustrates how rapidly the computational landscape has shifted toward AI-driven approaches as spatial transcriptomics platforms have scaled in resolution and throughput.

Machine learning for spatial dimensionality reduction

In machine learning spatial biology pipelines, UMAP has become the default dimensionality reduction tool in spatial transcriptomics, replacing t-SNE primarily because of its faster computation and greater scalability on large datasets. In a typical pipeline, UMAP is applied to the top principal components of the expression matrix to generate a 2D embedding, which is then colored by cluster membership, cell-type annotation, or marker gene expression. This UMAP plot provides researchers with an immediate, intuitive overview of the transcriptional landscape in a dataset.

The limitation is fundamental: UMAP treats each cell or spot as an independent data point and constructs its neighborhood graph entirely from expression distances. A 2022 study published in Communications Biology that evaluated dimensionality reduction methods for transcriptomic visualization found that UMAP and t-SNE perform well on local structure metrics but poorly on global structure preservation, and are both sensitive to parameter and preprocessing choices; PCA and newer methods such as PaCMAP outperform them on global distance preservation. Beyond these general limitations, none of these algorithms use tissue position as a structured input. The result is that an expression-only UMAP of a cortical section clusters cells by transcriptional type, but cells from spatially separated regions of the same type appear co-localized in the embedding, erasing the domain architecture visible in the original tissue.

Spatially aware dimensionality reduction methods address this gap directly. SpatialPCA, introduced by Shang and Zhou in a 2022 paper describing spatially aware dimension reduction in Nature Communications, extends probabilistic PCA by incorporating a kernel matrix that explicitly models the spatial correlation structure across tissue locations. The core assumption of SpatialPCA is that physically adjacent locations share correlated expression patterns, and this prior regularizes the low-dimensional embedding so that neighboring spots remain neighboring in embedding space.

In practical applications, SpatialPCA produces embeddings in which tissue domains appear as continuous, spatially coherent regions rather than as scattered clusters. Applied to human dorsolateral prefrontal cortex data, the method recovered the known laminar organization of the cortex and detected past neuronal developmental history embedded in the current transcriptomic landscape. Applied to tumor samples, SpatialPCA identified a tertiary lymphoid structure in the tumor microenvironment by preserving the gradual transcriptomic transition across the tissue section, a pattern that expression-only embeddings do not resolve.

Table 1: Comparison of dimensionality reduction methods for spatial transcriptomics visualization

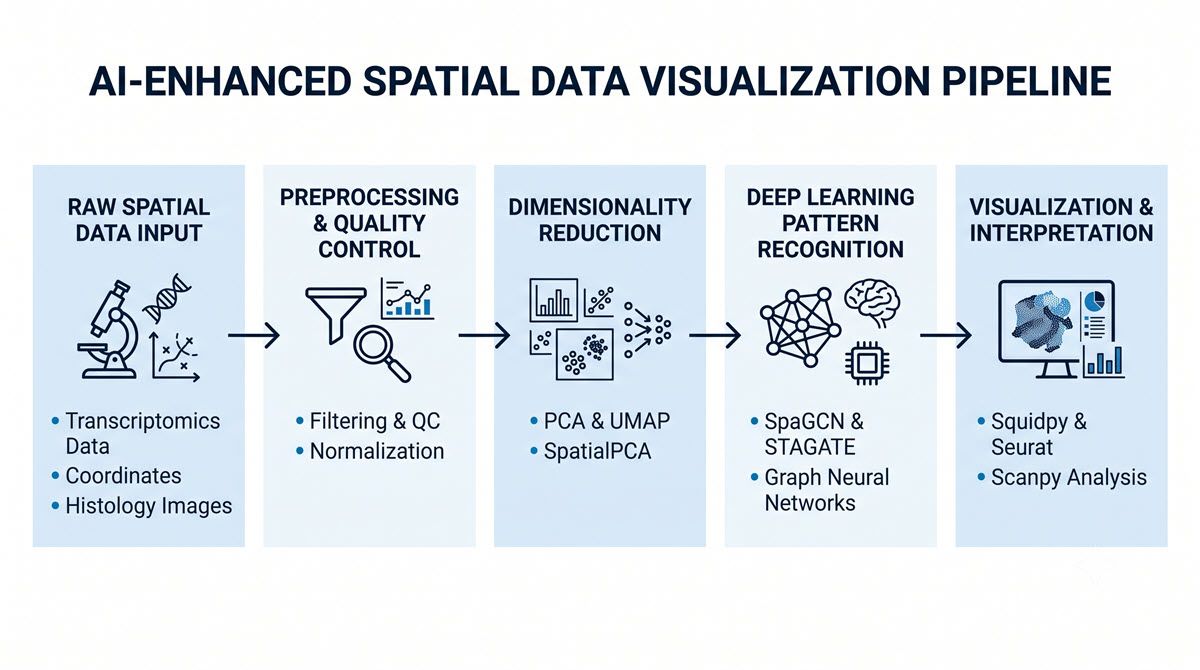

Figure 1: An AI-enhanced spatial data visualization pipeline, from raw molecular and positional measurements through deep learning pattern recognition to interactive biological interpretation. Credit: AI-generated image created using Google Gemini (2026).

Deep learning for spatial pattern recognition

Deep learning applied to spatial data goes beyond compression: rather than projecting high-dimensional expression into a lower-dimensional space, deep learning models learn to recognize biologically meaningful patterns directly from the combined molecular and positional input. In spatial transcriptomics, the most productive architecture for this task is the graph neural network (GNN), which models tissue as a graph where nodes represent spots or cells and edges encode spatial proximity, expression similarity, or both.

SpaGCN, published by Hu and colleagues in Nature Methods in 2021, was among the first tools to demonstrate graph convolutional network-based spatial domain identification. SpaGCN constructs an undirected weighted graph in which edge weights reflect both physical distance between spots and histological similarity derived from pixel color in the accompanying tissue image. Graph convolution then aggregates expression information from each spot and its spatial neighbors, producing enriched representations that capture the local tissue microenvironment. Domain detection is performed by clustering these convolved representations, yielding tissue regions with coherent expression and morphology. Validation across seven spatial transcriptomics datasets showed that SpaGCN identified spatially variable genes with substantially more enriched spatial expression patterns than competing approaches that used expression alone.

STAGATE (Spatial domain identification using adaptive graph attention auto-encoder), published by Dong and Zhang in Nature Communications in 2022, extends the GNN approach with an attention mechanism. Rather than weighting all neighbors equally in the convolution step, STAGATE learns to assign each neighboring spot a relevance weight based on the similarity between their expression profiles and positions. An optional cell-type-aware module allows the spatial neighbor network to be refined according to expression-based pre-clustering, sharpening domain boundary detection in heterogeneous tissue sections. The latent embeddings produced by STAGATE can be directly visualized as spatial domain maps, used for data denoising, or stacked across serial sections to extract three-dimensional (3D) spatial domains.

Together, GNN-based methods represent a qualitative advance over expression-only clustering for spatial visualization. The attention weights generated by models such as STAGATE can themselves be mapped spatially to show which neighboring spots most strongly influence each spot’s representation, providing a spatially explicit view of local microenvironment effects that is not accessible from UMAP or t-SNE plots. This interpretability layer is particularly valuable in the study of tissue boundaries and tumor-immune interfaces, where the precise spatial extent of a domain determines its biological interpretation.

AI-driven tools for spatial data visualization

The practical delivery of AI-enhanced visualization depends on software ecosystems that package these methods with accessible interfaces and scalable data structures. Several frameworks have established themselves as reference implementations for AI spatial transcriptomics analysis.

Squidpy, introduced by Palla and colleagues in Nature Methods in 2022, is a Python-based framework that integrates spatial omics data with neighborhood graph analysis and interactive visualization. Built on Scanpy and AnnData, Squidpy stores spatial coordinates and high-resolution tissue images alongside molecular measurements and provides seamless integration with napari for interactive visualization, enabling consistent, spatially coherent exploration at the spot, cell, and tissue levels. Core visualization capabilities include:

• Embedding plots that overlay spatial domain labels onto the original tissue coordinate space, enabling direct comparison of transcriptional clustering with tissue histology
• Neighborhood enrichment heatmaps that quantify and visualize the co-localization of defined cell types or domains across the tissue section
• Ligand-receptor interaction summaries computed from spatially resolved expression data, linked to the physical positions of interacting cells
• Image feature extraction from co-registered histology images, enabling joint visualization of molecular and morphological signals at the same spatial resolution

Seurat’s spatial extensions support direct overlaying of cluster labels and dimensionality reduction embeddings onto Visium tissue images, allowing side-by-side comparison of transcriptional clustering results and tissue morphology. Scanpy, paired with Squidpy, provides equivalent functionality in Python, with tighter integration with GNN-based methods such as SpaGCN through shared AnnData structures.

A growing challenge across all platforms is scale. Modern subcellular imaging platforms, including those reviewed in the context of spatial transcriptomics platforms, generate datasets with millions of individual transcript detections per tissue section, far exceeding the rendering capacity of standard plotting libraries. The field is moving toward lazy-loading data structures, GPU-accelerated rendering, and tiled image visualization approaches that allow exploration of large-scale datasets without loading them entirely into memory.

Selecting a spatial visualization approach: a practical framework

Choosing among available deep learning spatial data visualization tools is more tractable when broken into a structured sequence of decisions:

1. Define the biological question. Expression-only UMAP is sufficient for characterizing cell-type diversity across a tissue. Spatially aware methods such as SpatialPCA or GNN-based embeddings are necessary when the question concerns domain boundaries, expression gradients, or spatial trajectories.
2. Assess data scale. Spot-based platforms such as Visium generate datasets of a few thousand spots per section; subcellular imaging platforms generate tens of millions of transcript detections. The visualization framework must be capable of handling the specific data volume without memory overflow or rendering failure.
3. Consider spatial resolution. For subcellular data, cell segmentation quality directly affects the neighborhood graph construction and, consequently, the accuracy of GNN-derived domain maps. Poor segmentation propagates through the graph into the visualization.
4. Evaluate the availability of co-registered histology. If H&E or immunofluorescence images are available, frameworks such as Squidpy and methods such as SpaGCN that incorporate image features will produce more informative, biologically grounded visualizations than expression-only approaches.
5. Match the embedding strategy to the question. Use UMAP as a first-pass visualization for expression-driven cluster exploration, then apply spatially aware embeddings when the goal is interpreting tissue architecture, domain boundaries, or cell state gradients across a continuous spatial context.

The future of AI spatial data visualization

AI spatial data visualization is advancing along three interconnected fronts, each expanding what researchers can extract from spatial datasets: foundation models, generative AI, and improved interpretability tooling.

Foundation models pre-trained on large spatial transcriptomics atlases are beginning to emerge. These models learn general representations of tissue organization across tissues, species, and experimental conditions, and can be fine-tuned for specific biological questions without full retraining. In the visualization context, a foundation model pre-trained on atlas-scale data can generate informative low-dimensional embeddings for a new dataset by leveraging knowledge distilled from thousands of previously analyzed sections, producing consistent representations that facilitate cross-study comparison and standardized tissue annotation.

Generative approaches, including variational autoencoders and diffusion models, are also being applied to spatial data. An imaging-based assay that measures a few hundred genes can be computationally extended to a near-complete transcriptome by a generative model trained on matched whole-transcriptome reference data, enabling whole-transcriptome visualization from experiments that were not originally designed to support it. This capability has direct implications for the spatial visualization of targeted panel data from platforms such as CosMx and MERSCOPE, where panel size is constrained by experimental design rather than by the biology of interest.

Interpretability tooling is advancing alongside these model developments. Attention weights from models such as STAGATE can already be spatially mapped to show how local microenvironment composition influences each spot’s representation, and future work will connect these patterns more explicitly to specific gene programs and ligand-receptor interactions. Methods that produce gene-resolved, spatially explicit explanations of why certain regions cluster together will substantially increase the translational value of AI-driven visualization for researchers without deep computational training.

Patterns made visible: the evolving role of AI spatial data visualization

AI spatial data visualization has passed the threshold from experimental approach to core infrastructure in spatial biology. The methods reviewed here, from spatially aware probabilistic embeddings to graph attention autoencoders and interactive multi-scale visualization frameworks, collectively address a genuine gap between the information content of spatial datasets and the biological conclusions that conventional plotting methods can support.

For researchers building workflows within the broader landscape of spatial biology data analysis, the choice of visualization method is now as consequential as the choice of analysis algorithm. An expression-only UMAP of cortical data and a spatially aware embedding of the same data can lead to qualitatively different conclusions about domain boundaries and cell state gradients. As the methods and technologies driving spatial biology continue to advance in resolution and throughput, the pressure on AI visualization to extract meaningful patterns from increasingly complex data will only intensify.
