Boxer-8653AI-Plus:

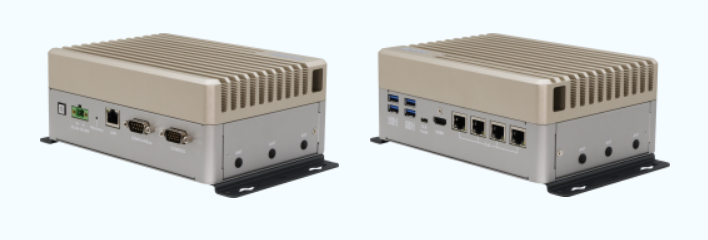

AAEON, a leading edge AI platform provider, announced the release of BOXER-8653AI-PLUS, an embedded AI system powered by NVIDIA Jetson Orin NX and supporting Super Mode.
Designed to provide multi-camera AI inference within a single-box architecture, a distinguishing feature of the BOXER-8653AI-PLUS is the presence of four independent PoE LAN ports. AAEON appears to be targeted at applications that rely on multiple peripheral cameras, with per-port power control that increases the flexibility of independent remote configurations.
The system’s PoE LAN ports are joined by four USB 3.2 Gen 2 ports and an additional RJ-45 port for Gigabit Ethernet. For interfacing with physical systems such as modern IoT devices or traditional industrial infrastructure, the BOXER-8653AI-PLUS includes a DB-9 port for RS-232 and CANBus, and a DB-15 port for RS-232/422/485 and 8-bit DIO.
Designed to run application-critical data at the edge, BOXER-8653AI-PLUS offers both onboard TPM 2.0 and remote management capabilities, the latter via an out-of-band management box header. Additionally, AAEON states that its AI model protection framework, MAZU, will be available on the device at no additional customization cost.
For expansion, BOXER-8653AI-PLUS hosts an M.2 3042/3052 B key slot and an M.2 2230 E key slot, supporting the installation of LTE/5G and Wi-Fi/BT modules, respectively. Meanwhile, the system comes pre-installed with a 128GB NVMe SSD.
Giving confidence to its positioning in the remote deployment market, BOXER-8653AI-PLUS has a wide power input range of 12V to 24V and temperature tolerance of -25°C to 65°C, making it ideal for harsh environments. Additionally, it has enhanced vibration and impact resistance, and can be easily mounted on walls, making it easy to install.
For detailed specifications and details of BOXER-8653AI-PLUS, please visit the dedicated product page. Meanwhile, pricing and ordering information is available through the contact form on the AAEON website.
