Prediction of ground vibration due to mine blasting in a surface lead–zinc mine using machine learning ensemble techniques

Artificial neural network (ANN)

ANN is one of the AI techniques, which first presented in the 1970s. The application of ANN has penetrated various fields of science⁷⁵. A model of ANN is designed based on activities of artificial neural of the human brain. The architecture of an ANN is constructed using the input layer, hidden layer(s), and output layer⁷⁶. Noteworthy, each layer includes many nodes (neurons) which are linked to each other by the weight of the processing components (connections). Input signals, which are the same as input data, are propagated throughout the network using input neurons. Then, input signals pass through the hidden layer(s) and access the output layer. In other words, some calculations are performed during passing signals in each layer and then delivered to the subsequent layer^77,78,79. These calculations are formulated in Eq. (1) which simulated the training process of the network⁸⁰

where f denotes activation function, w is the weight of connections, b indicates bias, and x is input data. Notably, the monolayer architecture of the neural network is suitable for simple problems, as well multi-layer architecture is used for complex problems⁸¹. However, an ANN architecture with two hidden layers for solving engineering problems is usually efficient⁷⁵.

Extreme gradient boosting (XGBoost)

XGBoost is one of the applicable artificial intelligence techniques, which is firstly introduced by Chen et al.⁸² in 2015. XGBoost, as an AI method, is developed based on the gradient boosting decision. The most important characteristic of this method is creating boosted trees effectively and generating them in parallel. Besides, XGBoost deals with well-known classification and regression problems e.g., Bhattacharya et al.⁸³, Duan et al.⁷⁵, Nguyen et al.⁸⁴, Ren et al.⁸⁵, and Zhang and Zhan⁸⁶. In XGBoost, gradient boosting (GB) creates a status under which an objective function (OF) is determined. The optimization of the value of OF is the core of the XGBoost algorithm, which operating to each various optimization technique. Overcoming the problems of data science has made it a robust algorithm. In XGBoost, parallel tree boosting of GB decision tree and GB machine can accurately solve many problems^75,84. Training loss (L) and regularization (Ω) are the two main components of an OF in this algorithm that defined as follows:

The model performance related to training data is measured using training loss. Notably, the control and overcome overfitting problem as a model complexity is performed by the regularization term. In this regard, the complexity associated with each tree is calculated in several ways; nevertheless, the following formula is widely used to determine the complexity:

where n indicates the number of leaves and \(\omega\) denotes the vector of scores on leaves. In XGBoost, the structure score is the OF represented as:

where q is the best \(\omega_{j}\) for a presented structure (a quadratic form). Noteworthy, the \(\omega_{j}\) is an independent vector.

Ensemble modeling

The ensemble of multiple individual learners (base models) is a robust way to enhance the performance and accuracy of artificial intelligence predictive models. In other words, the ensemble model deals with the combination of various models with different results⁸⁷. In general, ensemble modeling includes two components, i.e., an ensemble of base models and a combiner. Training several base models/networks by different subsets of the training data, and employing the different architectures for each of the base models are two common techniques to build the base models⁷¹, which in current work later method for constructing the base models are used. Also, to the combination of base models, different strategies are proposed where all attempt to reduce the error of estimation.

Generally, combiners are divided into two main groups, i.e., trainable and non-trainable methods. For the combination of the outputs of the base models to achieve a single solution two non-trainable methods, i.e., majority voting and averaging methods, are widely used by scholars, e.g., Barzegar and Asghari Moghaddam⁸⁸, Dogan and Birant⁸⁹, and Krogh and Vedelsby⁹⁰. As such, the mixture of experts and stacked generalization are two trainable combiners that are successfully used in different studies, e.g., Alizadeh et al.⁷⁰, Jacobs et al.⁹¹, and Wolpert⁹². The trainable combination methods are trained by outputs of base models and expected correct results to predict the final results. The trainable combiners for predicting models that there are complex relations between inputs and targets are more efficient.

In this study, for each of the methods, i.e., XGBoost and ANN, several models to predict the PPV by stacked generalization technique were combined. In this regard, some ANNs models with a different number of hidden nodes, various activation functions, and different training algorithms for predicting PPV were used. Then top ANNs architectures were combined by the stacked generalization methods to construct the ensemble ANNs that named EANNS model. Notably, various XGBoost models as individual models are developed with different nrounds and different maximum depth for PPV estimation, and then top XGBoost models were combined by the stacked generalization technique, which this newly constructed model is called ensemble XGBoosts (EXGBoosts) model. Figure 3 represents the framework of EANNs and EXGBoosts methods, respectively.

Stacking ensemble model

The stacking model basis is divided into two main phases, which are referred to as level-0 and level-1 structures, respectively. Base models are referred to as level-0, whereas the meta model at level-1 allows base-model predictions to be combined. Estimates provided by base-models are employed throughout the meta-training model’s phase. In the case of regression or classification, the predictions result of the basic-models are utilized as inputs and can be of genuine use to the meta-model⁶⁹. The methods of ANN and XGBoost are employed as the base-models in our research. Noteworthy, these models’ several separately architectures are each employed individually as meta-learners.

Pre-analysis of modeling process

This study develops EXGBoosts and EANNs models with seven effective variables and only one output variable to estimate PPV in Anguran lead–zinc mine. In the first step of modeling, all data were normalized in the interval of [0,1], for better network training. Equation (6) was used for normalization of data:

where x_norm denotes normalized value, x_max and x_min are the maximum and minimum values, and x_i indicates the input value. In the second step, to present the PPV predictive models, the collected data from the blasting site is randomly divided into two parts, i.e., training and testing datasets. In this regard, 80% of the whole data, namely approximately 130 blasting events, were specified randomly to the training part of models. While the remaining data (approximately 32 blasting events) were used for evaluation of the models’ performance.

In the third step, several base models are developed for PPV estimation and the performance of models is compared and evaluated using several statistical indicators such as coefficient determination (R²), root mean square error (RMSE), mean absolute error (MAE), the variance accounted for (VAF), and Accuracy (Eqs.7 to 11). These indices are calculated to evaluate the relationship between measured PPV values and estimated one by developed models.

where O_i, P_i, and \(\overline{P}_{i}\) are measured value, predicted value, and the average of the predicted values, respectively. Also, n indicates the number of datasets. However, the value of R², RMSE, MAE, VAF, and Accuracy for the most accurate system are one, zero, zero, 100, and 100, respectively.

PPV predictive models

ANN model

In the present study, for PPV prediction in a surface mine the multi-layer perceptron (MLP) artificial neural network as the most popular structure of ANN was used. The MLP structure contains at least one hidden layer. Hence, the determination of the training algorithm, number of hidden nodes, and hidden layers is a challenge in MLP modeling. In other words, the MLP structure must be designed to train optimally. The feedforward-backpropagation algorithm was used for MLP structure training. In addition, the “trial-and-error” procedure was employed to achieve an MLP model with an optimal structure to predict accurately PPV value. Therefore, 15 different MLP models as base models were developed (Table 4). As can be found, each of the models was trained with different training algorithms, hidden activation functions, output activation functions, and architectures. To determine the optimal architecture, the validation indices of R², RMSE, Accuracy, MAE, and VAF that were formulated in Eqs. (7) to (11) were separately calculated for ANN training and testing datasets. Remarkably, the scoring system proposed by Zorlu et al.⁹³ was applied to calculate the rate of each indices for MLP developed models. Table 5 shows the rating indices and ranking of MLP models. Based on results, base model number three with two hidden layers, “tansig” as hidden and output activation functions, and Levenberg–Marquardt (LM) training algorithm is the best base model for PPV prediction. This base model had the 141 total rates out of 150, that the values of (0.948, 0.567, 0.350, 94.767, 94.247) and (0.928, 0.293, 0.487, 92.773, 90.254) are obtained for R², RMSE, MAE, VAF, and Accuracy of training and testing datasets, respectively.

XGBoost model

Herein, the XGBoost algorithm is used for PPV prediction. Before that, two main stopping criteria, including maximum tree depth and nrounds, were determined. These criteria have a significant impact on the performance of models. Similar to MLP networks, the overfitting problem there is also in XGBoost, which is occurred when the tree depth and the nrounds are set in the much values. Therefore, the range of [1–3] and [50–200] are considered for the maximum tree depth and nrounds. Similar to the ANN, the “trial-and-error” technique was used to determine an XGBoost model with the best performance. As shown in Table 6, the validation indices were computed to evaluate the base models of XGBoost performance. To construct the ensemble of XGBoost, 15 base models with different values of nrounds and maximum tree depth were developed. Based on Table 7, 15 base models of XGBoost were evaluated using Zorlu et al.⁹³ scoring system. The results were shown that XGBoost base model number two, with the values of 50 and 1 for nrounds and maximum tree depth had the best performance in the PPV prediction, which this base model of XGBoost gets the score of 145 out of 150. The validation indices, i.e., R², RMSE, MAE, VAF, and Accuracy were calculated as (0.977, 0.650, 0.402, 97.578 (%), 96.828) and (0.979, 0.536, 0.680, 97.895(%), 96.528) for training and testing datasets, respectively. However, a comparison between top base models of XGBoost and ANN reveals the superiority of the XGBoost method in the prediction of PPV.

Ensemble model of ANNs (EANNs) to predict PPV

For the ensemble model of ANN, first, 15 base models for ANN are developed, and then after evaluation of the base models, five top base models for combination were chosen, that the scores of these models were 141, 127, 118, 106, and 100 out of 150, respectively. The correlation of measured PPV and predicted ones by five base models are illustrated in Fig. 4. After that, the stacked generalization combination technique was employed to combine the selected base models. For combination, the results of selected base models a feed-forward neural network with sigmoid activation function for hidden layers were used (Fig. 5). The input data of the combiner network consists of seven variables and the target dataset is the measured value of PPV.

The correlation graph of predicted values using the stacked generalization technique and measured values is illustrated in Fig. 6. The values of (0.960, 0.402, 0.233, 95.963(%), 95.724) and (0.941, 0.189, 0.219, 92.827(%), 95.713) were obtained for both R², RMSE, MAE, VAF, and Accuracy of training and testing datasets, respectively. Results proved that the EANNs model predicts PPV better than individual ANN (base models), so that the EANNs model 41% and 55% improved the RMSE of PPV prediction for training and testing part, respectively, in comparison with the best base model.

Ensemble model of XGBoosts (EXGBoosts) to predict PPV

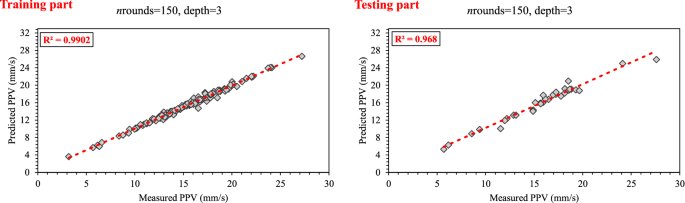

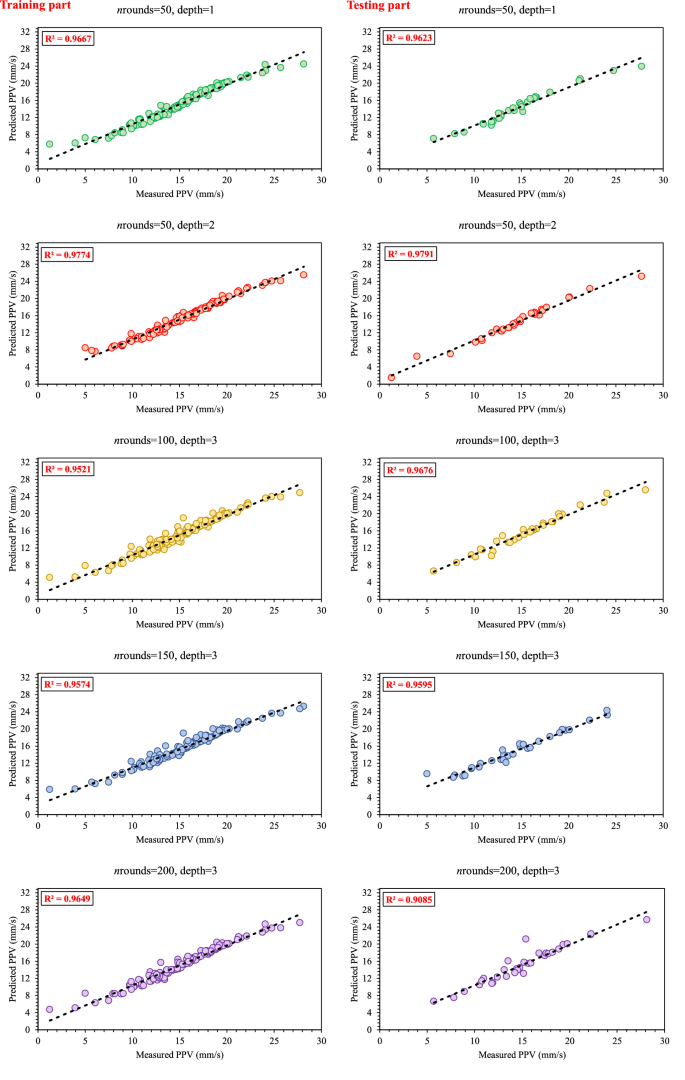

To construct EXGBoosts model for the prediction of PPV, first, several XGBoost models were developed. In this regard, 15 constructed XGBoost models were analyzed, and the five top base models with the highest score were selected. The numbers 145, 126, 115, 100, and 98 were the scores of the five top base models. The EXGBoosts model was structured based on a combination of five XGBoost base models. The base models using stacked generalization technique was combined to predict PPV. Figure 7 showed the correlation of PPV estimations by five XGBoost base models and measured values of PPV. The combiner was structured using a nrounds of 15 and a maximum tree depth of three. The results of stacked generalization show, the accuracy of the EXBoosts model in comparison with the best XGBoost base models is better (Fig. 8 and Table 8). To better comparing of the applied methods capability in estimating of PPV value, the performance of developed ANN, EANNs, XGBoost, and EXGBoosts models are tabulated in Table 8. The obtained statistical indices indicated that the EXGBoosts model with the value of (0.990, 0.391, 0.257, 99.013(%), 98.216) and (0.968, 0.295, 0.427, 96.674(%), 96.059) for R², RMSE, MAE, VAF, and Accuracy of training and testing datasets, respectively, represents the highest performance for prediction of PPV among all applied models. Besides, EXGBoosts model 66% and 82% improved the RMSE of PPV prediction for training and testing part, respectively, in comparison with the best base model. The obtained results of performance indices regarding to our model presented in Table 9. This table compares the prediction accuracy and performance level of out proposed approach with three latest research. The results demonstrates that EXGBoost model has more performance capacity in model and estimation of PPV in comparison with the other methods.

It is known that the significance of the estimation of level l (where l reveals the percentage of estimation) stands the quotient of the number of samples in which the estimations are within l absolute limit of measured values divided by the total number of samples. A common metric for evaluating the best models is P(0.25) ≥ 0.75 or 75%⁹⁴. The level of 25% was used to test model in our study.

In which, where n is the number of dataset, P_i denotes the predicted value, and O_i indicates the observed values.

The 25% level estimation of ANN, XGBoost, EANNs, and EXGBoosts are showed in Table 10. As can be seen, the ANN at P(0.25) is not acceptable in validation dataset, but other models is acceptable in both testing and validation datasets. It can be concluded that the ensemble models developed in this study have the highest performance and capability in predicting PPV.

Multiple parametric sensitivity analysis (MPSA)

In this part, a parametric analysis was conducted to specify which influential parameters have the highest impact on the average PPV value. In this regard, a multiple parametric sensitivity analysis (MPSA) was performed that follows the six main steps for applying to the outputs of the system for a specific set of parameters. These steps are as follows:

Step 1 Selecting the effective parameters to be subjected.

Step 2 Adjusting the range of input parameters.

Step 3 Generating a set of independent parameters in the form of random numbers with a uniform distribution for each parameter.

Step 4 Running the machine learning method utilizing the generated series and calculating the objective function using Eq. (12). The objective function was computed using the sum of square errors between measured and predicted values⁹⁵:

where f_h denots the objective function value for a particular PPV_t variable h; x_o,h indicates the measured values; x_c,h(i) is the calculated value x_c for variable h for each generated inputs; and n is the number of variables contained in the random set. In the computation process, the Monte Carlo simulation was used to generate 162 random data for seven effevtive parameters used in this study. At each iteration of the model, the trained models were provided with the newly produced values for one parameter.

Step 5 Determining the relative importance of effevtive parameters separately using Eq. (13)⁹⁵:

In which, h is the variable that is used to introduce pairs of effective parameters. The outcomes that were achieved for each of the evaluated parameters were produced by using the technique that was provided to the PPV_t model. Equation (13) had a significant importance in the accomplishment of these results.

Step 6 Evaluating parametric sensitivity and determining relative relevance of effective parameters using Eq. (14)⁹⁵:

where the δ_t is computed from the first series of dataset (h = 1) to the maximum values (\(i_{PPV,max}\)), which is 162 data for developed model in this study. Table 11 provides a tabular breakdown of the value spectrum that was employed throughout the evaluating of each parameter.

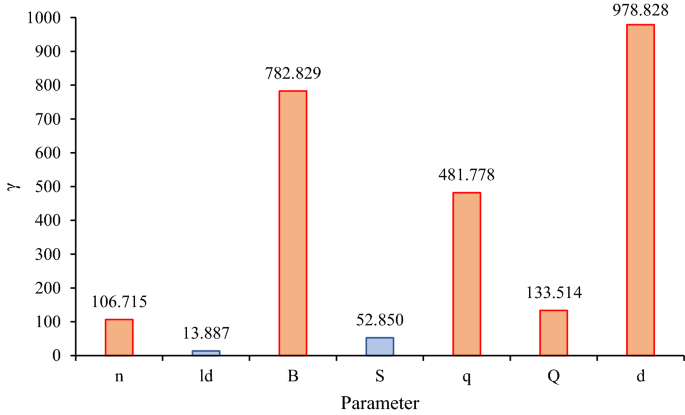

The lower the γ index value for each parameter, the less sensitive the st model is to that parameter, and the higher the γ index, the more sensitive the model is to the parameter under consideration. Table 11 has presented the γ index to evaluate the impact of model parameters and identify the most sensitive parameters. The calculated γ index for each parameter is depicted in Fig. 9. It can be found that the order of the sensitivity of the PPV to the parameters is l_d < S < n < Q < q < B < d. It can be concluded that the PPV is highly sensitive to d, B, q, Q, and n, as well as sensitive to S and l_d.

Influence of delay sequence on PPV

The seismic energy is what causes the blasting vibrations to be generated, and it also literally symbolizes the problems created to the rock-mass that extends beyond the boundaries of the explosion patch. The blasting pattern design specifications, explosives type and properties, and the physio-mechanical characteristics of the rock-mass all affect how much PPV occurs. The generation of PPV for several experimental implementing blasting has been obtained; the PPV value is reported as 5.12–17.23, 3.91–12.14, and 1.48–5.93 in the delay sequence (row to row) of 9, 15, and 23 ms. It can be concluded that the 23 ms delay between the rows will assist in lowering the PPV, which may be lowered up to a particular value by choosing the right delay sequence in production blast, according to field observations and data analysis.

The superimposition of waveform due to delay sequence refers to the effect of time delays on the coherence of signals. When two or more signals are delayed relative to each other, their waveforms may overlap and interfere with each other, resulting in a composite waveform that may be difficult to interpret. The impact of this effect on the outcome of a result depends on the specific context of the analysis. In some cases, such as in signal processing or communication systems, delay sequences are intentionally introduced to improve signal quality or reduce interference. In these cases, the superimposition of waveforms may be a desirable effect. However, in other cases, such as in physiological or biological signal analysis, the superimposition of waveforms due to delay sequences can lead to a loss of information and inaccuracies in the analysis. For example, in electroencephalogram (EEG) recordings, time delays between signals from different brain regions can result in overlapping waveforms that make it difficult to identify the underlying brain activity.
