This section presents a comprehensive methodological framework developed for risk-based asset allocation using machine learning techniques. The proposed approach integrates advanced neural architectures and financial theory to create a dynamic portfolio optimization system that adapts to changing market conditions while maintaining computational efficiency and interpretability.
Overview of the theoretical framework and model
The foundation of our methodology is based on the integration of modern portfolio theory and deep learning capabilities. We extend the classic risk parity framework by introducing dynamic risk budgeting that responds to market regime signals. The central optimization problem is formulated as a multiobjective function that balances measures of expected return, portfolio variance, and tail risk.
$$\begin{align} \underset{w_t}{\text {minimize}} \ \mathbb {E}[R_p] + \lambda _1 \sigma ^2_p + \lambda _2 \text {MDD}_p + \lambda _3 \Vert {\bf w}_t – {\bf w}_{t-1}\Vert _1 \end{aligned}$$
(4)
where \(w_t\) represents the weight of a portfolio that changes over time, \(\Sigma ^2_p\) indicates the portfolio difference; \(\text {MDD}_p\) We capture the maximum drawdown and penalize excessive turnover in the final condition to control transaction costs.
The novelty of our approach lies in the integration of three complementary components. (1) a volatility prediction module using an LSTM network, (2) a regime detection mechanism based on market state variables, and (3) a differentiable risk budget layer that enables end-to-end training. This unified architecture allows the model to adapt to current market conditions while simultaneously learning from past patterns.

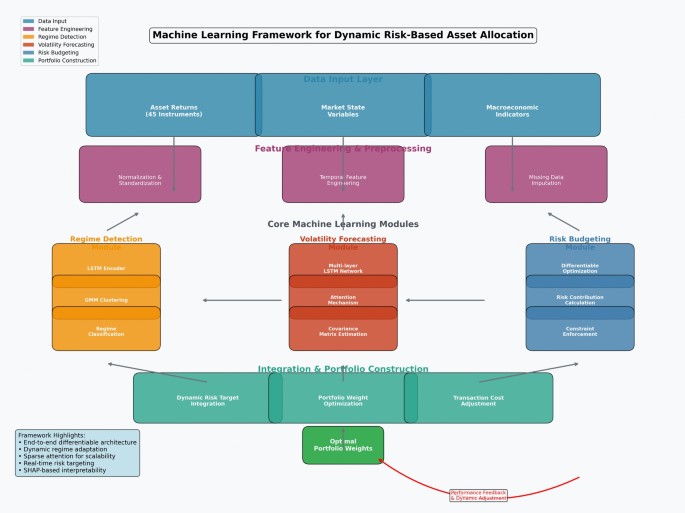

The proposed machine learning framework is shown in Figure 1.
A comprehensive architecture of a proposed machine learning framework for dynamic risk-based asset allocation. The system processes multiple data sources through dedicated modules for feature extraction, regime detection, and volatility prediction, culminating in an optimized portfolio construction layer with integrated risk constraints.
Data collection and preprocessing framework
Our data framework takes a multi-source approach that combines asset returns with macroeconomic and market-based state variables. The dataset spans from January 2005 to December 2022 and covers multiple market cycles, including the global financial crisis, the European debt crisis, the COVID-19 pandemic, and the 2022 inflation period.
Configuring the asset universe
The investment universe consists of 45 instruments selected to represent the major asset classes while maintaining practical relevance to institutional investor portfolios.
-
Equities (30 assets): Global equities covering 95% of market capitalization in developed and emerging markets, including sector diversification
-
Fixed Income (10 assets): Government and corporate bonds that represent 82% of the Bloomberg World Composite Index across the duration and credit quality spectrum.
-
Commodities (5 assets): Major commodities that account for 89% of futures trading volume, including energy, metals, and agricultural products.
This configuration ensures sufficient diversification while maintaining computation tractability. The selection criteria follows the institutional criteria listed in the following documents:10.
State variables and feature engineering
In addition to asset returns, we also incorporate state variables that serve as leading indicators of market regimes and risk conditions.
$$\begin{align} {\bf x}_t = [\text {VIX}_t, \text {TED}_t, \Delta \text {Yield}_{t}^{(10Y-3M)}, \text {MktCap}_t^{1/2}, \text {Momentum}_t, \text {Liquidity}_t] \end{Align}$$
(5)
These variables capture volatility expectations (VIX), credit risk (TED spread), yield curve dynamics, market size effects, price trends, and liquidity conditions. Each variable undergoes rigorous preprocessing, including winsorization at the 1st and 99th percentiles, standardization, and imputation of missing values using an expectation-maximization algorithm.4.
Calculating and adjusting returns
Excess returns are calculated relative to the risk-free rate, following standard techniques in the portfolio optimization literature.2:
$$\begin{Alignment} r_{i,t} = \frac{P_{i,t} – P_{i,t-1}}{P_{i,t-1}} – r_{f,t} \end{Alignment}$$
(6)
where \(pit}\) represents the price of an asset I sometimes tand \(r_{f,t}\) represents the risk-free rate at the same point in time. Returns are adjusted for corporate activity, dividends, and currency effects (where applicable).
Machine learning architecture specification
Neural architectures combine temporal modeling, attention mechanisms, and financial constraints into an integrated framework. Each component is designed to address specific limitations of traditional portfolio optimization techniques.
Volatility prediction module
It employs a multilayer LSTM network for conditional covariance matrix estimation and is built on the architecture proposed by.5 However, the functionality for financial time series has been enhanced.
$$\begin{aligned} h_t^{\text {LSTM}}&= \sigma (W_h [h_{t-1},{ \bf x}_t] + b_h) \end{Align}$$
(7)
$$\begin{aligned} \hat{\Sigma }_t&= \text {Softplus}(W_\Sigma h_t^{\text {LSTM}} + b_\Sigma ) \end{aligned}$$
(8)
The LSTM configuration includes 256 hidden units per layer and uses layer normalization and dropout regularization (rate = 0.3) to prevent overfitting. Activation of Softplus ensures positive definiteness of the covariance matrix estimation, which is a key requirement for portfolio optimization.
Regime detection and adaptation mechanism
The identification of market regimes follows a hybrid approach that combines unsupervised learning and economic intuition. We use a Gaussian mixture model (GMM) with a Bayesian information criterion to select the number of regimes.
$$\begin{aligned} p({\bf x}_t) = \sum _{k=1}^K \pi _k \mathscr {N}({\bf x}_t | \mu _k, \Sigma _k) \end{aligned}$$
(9)
The detected regime dynamically adjusts the risk objective through a gating mechanism.
$$\begin{aligned} \beta _t = \sum _{k=1}^K \gamma _k \cdot {\bf b}_k, \quad \gamma _k = \text {Softmax}(W_g [h_t^{\text {LSTM}}, {\bf x}_t]) \end{align}$$
(10)
where \({\bf b}_k\) represents a regime-specific risk budget, \(\gamma_k\) indicates the gate weight.
Differentiable risk budgeting layer
The core innovation of our methodology is a differentiable optimization layer that solves the risk budgeting problem in a gradient-based manner. Following recent advances in differentiable programming17Now we implement the risk parity condition as a constrained optimization problem.
$$\begin{aligned} \min _{{\bf w}_t} \left\| \frac{{\bf w}_t \circ (\hat{\Sigma }_t {\bf w}_t)}{{\bf w}_t^\top \hat{\Sigma }_t {\bf w}_t} – {\bf b} \right\| _2^2 + \lambda _1 \Vert {\bf w}_t\Vert _1 + \lambda _2 \Vert {\bf w}_t – {\bf w}_{t-1}\Vert _2^2 \end{aligned}$$
(11)
This formulation ensures compliance with target risk contributions while controlling turnover and diversification. The differentiability of the layers allows end-to-end training with backpropagation.
sparse attention mechanisms
To address the computational complexity in high-dimensional settings, we implement a sparse attention mechanism inspired by the following.twenty two:
$$\begin{aligned} \alpha _{ij} = \frac{\exp (q_i^\top k_j / \sqrt{d})}{\sum _{l \in \mathscr {N}(i)} \exp (q_i^\top k_l / \sqrt{d})}, \quad \text {with } |\mathscr {N}(i)| \le k \end{Alignment}$$
(12)
where \(\mathscr {N}(i)\) Indicates the asset’s neighborhood I limited to k Most relevant assets. This reduces computational complexity. \(O(p^2)\) to ○(P.K.) while maintaining modeling flexibility.
Training protocol and regularization strategy
The training process employs a strict walkforward validation scheme to ensure temporal robustness and prevent data leakage. This approach mirrors real-world investment processes where models are periodically retrained with an expanding window.
Loss function design
A compound loss function balances multiple objectives related to actual portfolio management.
$$\begin{aligned} \mathscr {L}(\theta ) = -\frac{\mathbb {E}[R_p]}{\sqrt{\text {Var}(R_p)}} + \gamma _1 \text {MDD}(R_p) + \gamma _2 \text {Turnover} + \gamma _3 \Vert \theta \Vert _2^2 \end{aligned}$$
(13)
The Sharpe ratio component maximizes risk-adjusted returns, but the maximum drawdown period penalizes extreme losses. Sales normalization controls transaction costs, and L2 penalties prevent overfitting.
Walkforward verification scheme
Follow financial forecasting best practicestwenty fourimplements a rolling window approach.
-
Training window: 5 years of monthly data (60 observations)
-
Validation period: 1 year (12 observations) for hyperparameter tuning
-
Test period: 1 year (12 observations) for out-of-sample evaluations
This window rolls forward monthly to ensure that your model is constantly tested on unseen data while incorporating the latest market information.
Regularization and overfitting mitigation
Considering the high dimensionality and noise characteristics of financial data, we adopt multiple regularization techniques.
-
Dropout: rate 0.3 applied to the LSTM layer to prevent co-adaptation
-
Early stopping: Training terminates if the validation loss does not improve for 10 consecutive epochs.
-
Label smoothing: applied to regime classification to prevent overconfidence
-
Gradient clipping: norm-based clipping of 1.0 for stable training
Combining these techniques ensures that the model learns robust patterns rather than memorizing noise.
Hyperparameter optimization
For efficient hyperparameter search, we employ Bayesian optimization using a tree-structured Parzen Estimator (TPE). The optimization space includes:
$$\begin{aligned} \Theta = \{\lambda _1 \in [0,1],\lambda _2 \in [0.5,2]k \in \{10,15,\dots ,30\}, \text {dropout} \in [0.1,0.5]\text {learning rate} \in [10^{-5},10^{-3}]\} \end{Align}$$
(14)
The optimization process is run for 100 trials and the optimal configuration is selected based on the performance on the validation set. Table 1 summarizes the final hyperparameter values.
Benchmark models and evaluation frameworks
To ensure a comprehensive evaluation, we compare against three established benchmarks representing different approaches to portfolio optimization.
Traditional risk parity
It was implemented as below3equal risk contribution approach. Solved by sequential quadratic programming with convergence tolerance. \(\epsilon =10^{-6}\).
deep portfolio network
based on8The architecture features a three-layer feedforward network with ReLU activation and batch normalization.
Robust mean-variance optimization
Incorporation of Ledoit-Wolf contraction with optimal contraction strength determined by cross-validation19.
performance indicators
Valuations use multiple metrics to understand various aspects of a portfolio’s performance.
$$\begin{aligned} \text {Sharpe Ratio}&= \frac{\sqrt{252}\mu _{\text {daily}}}{\sigma _{\text {daily}}} \end{aligned}$$
(15)
$$\begin{aligned} \text {maximum drawdown}&= \max _{0\le \tau \le t}\left( 1-\frac{P_t}{P_\tau }\right) \end{aligned}$$
(16)
$$\begin{aligned} \text {Turnover}&= \frac{1}{T}\sum _{t=1}^T \Vert {\bf w}_t – {\bf w}_{t-1}\Vert _1 \end{aligned}$$
(17)
$$\begin{aligned} \text {Calmar Ratio}&= \frac{\text {Annualized Return}}{\text {Maximum Drawdown}} \end{aligned}$$
(18)
Statistical significance is assessed using the Diebold-Mariano test with Newey-West standard errors to account for autocorrelation.
Implementation details
The model is implemented in PyTorch 2.0 with a custom CUDA kernel for efficient sparse attention computation. Training utilizes mixed-precision NVIDIA A100 GPUs to speed up computations while maintaining numerical stability. The codebase follows modular design principles to promote reproducibility and extensibility.
This comprehensive methodological framework balances theoretical rigor with practical implementation considerations while providing a solid foundation for dynamic risk-based asset allocation. The subsequent sections present empirical results validating the approach in different market situations.
